- GIGABYTE
Τιμή
€134 29 / 262 65 BGN
με ΦΠΑ
* ΕΞΩΤΕΡΙΚΟΣ ΠΡΟΜΗΘΕΥΤΗΣ - (1 έως 3 ημέρες)
* - Το προϊόν βρίσκεται στην αποθήκη του επίσημου εισαγωγέα της μάρκας για τη Βουλγαρία. Ο χρόνος παράδοσης είναι συνήθως από 1 έως 3 εργάσιμες ημέρες. Είναι πιθανό τη στιγμή της ολοκλήρωσης της παραγγελίας το προϊόν να έχει ήδη εξαντληθεί. Σε περίπτωση εξάντλησης του αποθέματος θα επικοινωνήσουμε μαζί σας
Σας ενημερώνουμε ότι, παρά τις προσπάθειές μας, δεν μπορούμε να εγγυηθούμε ότι οι δημοσιευμένες πληροφορίες και εικόνες δεν περιέχουν ανακρίβειες ή λάθη, τα οποία δεν μπορούν να αποτελέσουν νομική βάση για αξιώσεις.
Vendor_url
https://www.gigabyte.com/Motherboard/B760-GAMING-X-DDR4-GEN5
Graphics
Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support for native HDMI 2.1 TMDS compatible ports.
CPU's supported
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
L3 cache varies with CPU
Chipset
Intel® B760 Express Chipset
Expansion slots
CPU:
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
- 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2)
Storage
CPU:
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
- 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB)
- 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Memory type
Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules
4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Rear panel I/O
iTE® I/O Controller Chip
USB
Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
- 1 x USB 2.0/1.1 port on the back panel
Chipset+2 USB 2.0 Hubs:
- 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C® header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper

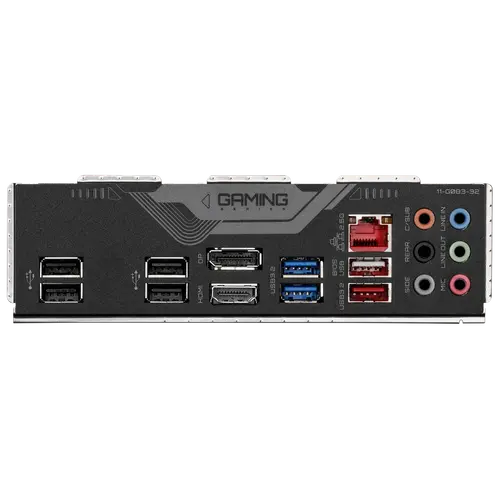

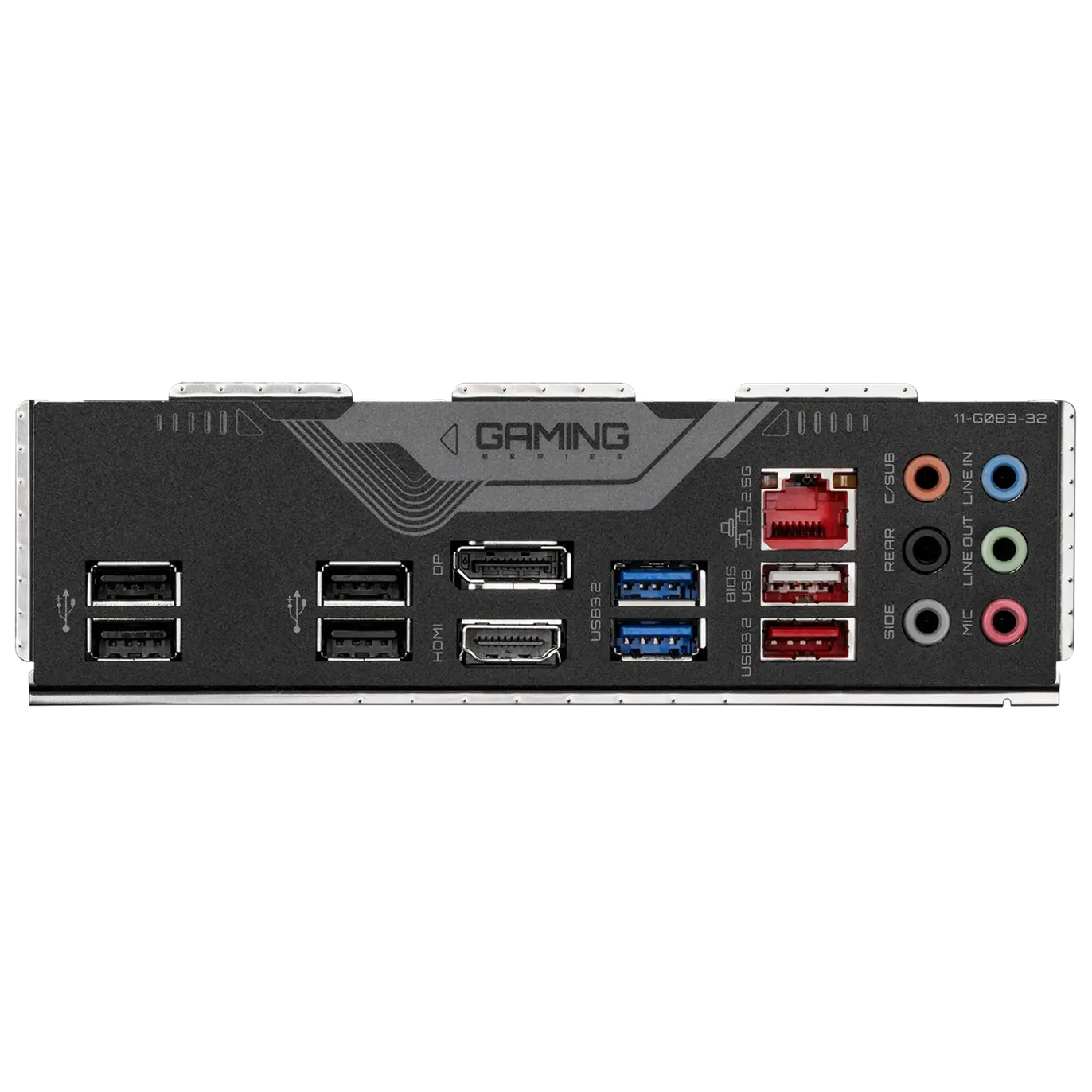

Back Panel Connectors
1 x USB 3.2 Gen 2 Type-A port (red)
2 x USB 3.2 Gen 1 ports
5 x USB 2.0/1.1 ports
1 x DisplayPort
1 x HDMI port
1 x RJ-45 port
6 x audio jacks
Audio
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
Lan
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factor
ATX Form Factor
30.5cm x 24.4cm
OS
Support for Windows 11 64-bit
Support for Windows 10 64-bit
Warranty
36 Months
Στοιχεία που υποβλήθηκαν από τον επίσημο εισαγωγέα για τη Βουλγαρία.
| Χαρακτηριστικό | Τιμή |
|---|---|
| Vendor_url | https://www.gigabyte.com/Motherboard/B760-GAMING-X-DDR4-GEN5 |
| Chipset | Intel® B760 Express Chipset |
| OS | Support for Windows 10 64-bit |
| OS | Support for Windows 11 64-bit |
| Warranty | 36 Months |
| CPU's supported | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors |
| CPU's supported | L3 cache varies with CPU |
| Memory type | 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory |
| Memory type | Dual channel memory architecture |
| Memory type | Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) |
| Memory type | Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules |
| Memory type | Support for Extreme Memory Profile (XMP) memory modules |
| Memory type | Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.) |
| Form Factor | 30.5cm x 24.4cm |
| Form Factor | ATX Form Factor |
| Audio | Realtek® Audio CODEC |
| Audio | High Definition Audio |
| Audio | 2/4/5.1/7.1-channel |
| Audio | Support for S/PDIF Out |
| Rear panel I/O | iTE® I/O Controller Chip |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Expansion Slots | * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. |
| Expansion Slots | Chipset: |
| Expansion Slots | CPU: |
| Expansion Slots | - 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2) |
| Expansion Slots | - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) |
| Graphics | * Support for DisplayPort 1.2 version and HDCP 2.3 |
| Graphics | - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz |
| Graphics | ** Support for native HDMI 2.1 TMDS compatible ports. |
| Graphics | * Support for HDMI 2.1 version and HDCP 2.3. |
| Graphics | Integrated Graphics Processor-Intel® HD Graphics support: |
| Graphics | - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz |
| Features | Support for Q-Flash |
| Features | Support for GIGABYTE Control Center (GCC) |
| Features | Support for Q-Flash PlusSupport for Smart Backup |
| BIOS | 1 x 256 Mbit flash |
| BIOS | Use of licensed AMI UEFI BIOS |
| BIOS | PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| I/O | iTE® I/O Controller Chip |
| Storage | RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| Storage | CPU: |
| Storage | Chipset: |
| Storage | - 4 x SATA 6Gb/s connectors |
| Storage | - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) |
| Storage | - 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB) |
| Connectors | 1 x 24-pin ATX main power connector |
| Connectors | 1 x CPU fan header |
| Connectors | 3 x system fan headers |
| Connectors | 1 x system fan/water cooling pump header |
| Connectors | 3 x M.2 Socket 3 connectors |
| Connectors | 1 x front panel header |
| Connectors | 1 x front panel audio header |
| Connectors | 1 x S/PDIF Out header |
| Connectors | 1 x USB 3.2 Gen 1 header |
| Connectors | 2 x USB 2.0/1.1 headers |
| Connectors | 1 x serial port header |
| Connectors | 1 x Q-Flash Plus button |
| Connectors | 1 x reset jumper |
| Connectors | 1 x Clear CMOS jumper |
| Connectors | 1 x 8-pin ATX 12V power connector |
| Connectors | 4 x SATA 6Gb/s connectors |
| Connectors | 1 x RGB LED strip header |
| Connectors | Back Panel Connectors |
| Connectors | 1 x RJ-45 port |
| Connectors | 1 x CPU fan/water cooling pump header |
| Connectors | 2 x USB 3.2 Gen 1 ports |
| Connectors | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) |
| Connectors | 3 x addressable RGB Gen2 LED strip headers |
| Connectors | 1 x DisplayPort |
| Connectors | 1 x HDMI port |
| Connectors | 1 x USB 3.2 Gen 2 Type-A port (red) |
| Connectors | 1 x USB Type-C® header, with USB 3.2 Gen 2 support |
| Connectors | 5 x USB 2.0/1.1 ports |
| Connectors | 6 x audio jacks |
| USB | Chipset: |
| USB | - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support |
| USB | - 1 x USB 2.0/1.1 port on the back panel |
| USB | - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) |
| USB | - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel |
| USB | - 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header |
| USB | - 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
| USB | Chipset+2 USB 2.0 Hubs: |
| Βάρος | 0.00kg |
Στοιχεία που εξήχθησαν αυτόματα από το διαδίκτυο. Η ακρίβειά τους δεν είναι εγγυημένη. Για αναλυτικές πληροφορίες, παρακαλούμε επικοινωνήστε μαζί μας ή επισκεφθείτε τη σελίδα του κατασκευαστή.
| Χαρακτηριστικό | Τιμή |
|---|---|
| Socket | LGA1700 |
| Form Factor | ATX |
| Chipset | Intel B760 |
| Memory Type | DDR4 |
| Memory Slots (count) | 4 |
| Max Memory (GB) | 128 |
| SATA Ports (count) | 4 |
| Wi-Fi Built-in | No |
| LAN Speed | 2.5 Gbps |
| Βάρος | 0.00kg |
Προσοχή! Επειδή δεν υποβάλλουν όλοι οι εισαγωγείς σωστά τα στοιχεία των προϊόντων, οι παρακάτω πληροφορίες έχουν εξαχθεί με τη βοήθεια τεχνητής νοημοσύνης από διάφορες πηγές στο διαδίκτυο και δεν είναι 100% ακριβείς. Αν έχετε αμφιβολίες για κάτι, παρακαλούμε επικοινωνήστε μαζί μας για να ελέγξουμε με ακρίβεια τα χαρακτηριστικά που επιθυμείτε.
GIGABYTE B760 GAMING X D4 GEN5 – геймърска ATX дънна платка с поддръжка на PCIe 5.0 видеокарти
GIGABYTE B760 GAMING X D4 GEN5 е добър избор за геймърска конфигурация с Intel LGA 1700. Слотът за видеокарта е PCIe 5.0 и е готов за новите видеокарти. Поддръжката на DDR4 ви позволява да използвате паметта, която вече имате. Платката работи с процесори Intel Core 12-о, 13-о и 14-о поколение.
Ключови предимства
- Слот за видеокарта PCIe 5.0 — Версията GEN5 добавя поддръжка на PCIe 5.0 в основния x16 слот. Системата ви е готова за най-новите видеокарти.
- Поддръжка на DDR4 — Четири DIMM слота с до 128 GB DDR4. Получавате висока производителност на по-ниска цена и можете да използвате текущата си памет.
- Чипсет Intel B760 и сокет LGA 1700 — Работи с процесори Intel Core 12-о, 13-о и 14-о поколение, така че имате широк избор на процесори и възможност за ъпгрейд.
- 2.5 Gbps LAN — Бърза жична мрежа за онлайн игри с ниска латентност, стрийминг и бързо прехвърляне на файлове.
- Бързо съхранение — M.2 слотове за NVMe SSD с PCIe 4.0 и 4 SATA порта за SSD и твърди дискове.
- Дизайн от серията GIGABYTE GAMING — Надеждно захранване, радиатори на ключовите елементи и лесен за ползване BIOS за стабилна работа всеки ден.
Технически спецификации
| Характеристика | Стойност |
|---|---|
| Производител | GIGABYTE |
| Модел | B760 GAMING X D4 GEN5 |
| Сокет | Intel LGA 1700 |
| Поддържани процесори | Intel Core 12-о / 13-о / 14-о поколение |
| Чипсет | Intel B760 |
| Форм фактор | ATX |
| Тип памет | DDR4 |
| Слотове за памет | 4 x DIMM |
| Максимална памет | 128 GB |
| Основен слот за видеокарта | PCIe 5.0 x16 |
| SATA портове | 4 x SATA 6Gb/s |
| LAN | 2.5 Gbps |
| Wi-Fi | Не |
| EAN | 4719331873448 |
Какво има в кутията
- Дънна платка GIGABYTE B760 GAMING X D4 GEN5
- SATA кабел(и)
- Винт(ове) за M.2
- Кратко ръководство за инсталация
